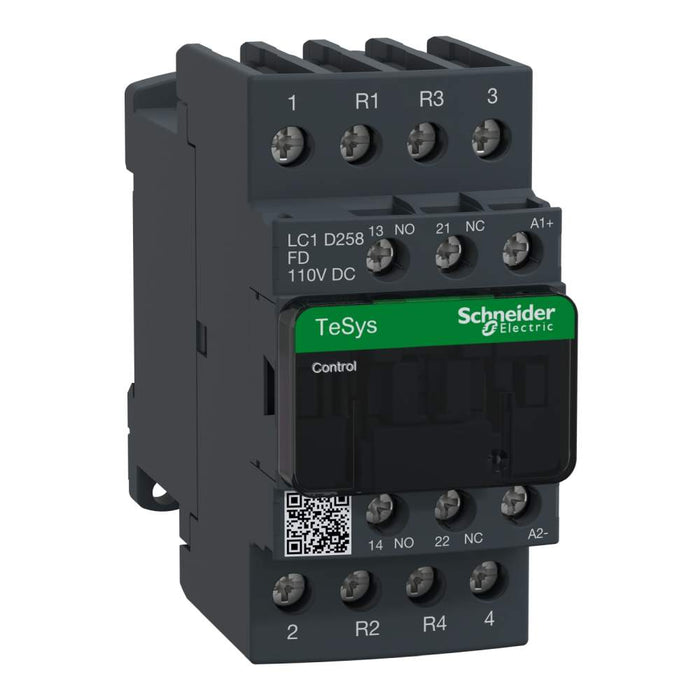

Deca Contacter 4P 40A AC-1 (2NO 2NC) 110VDC

Ideal Part Number SCHLC1D258FD Manufacturer Number LC1D258FD Barcode 3389110432664

Product Details

Deca Contacter 4P 40A AC-1 (2NO 2NC) 110VDC

TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 40A/690V AC-1. It provides a 110V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Click and Collect: Pick up from your branch in 1 hour

Technical Specifications

Modular version
no
Number of normally open contacts as main contact
2
Number of normally closed contacts as main contact
2
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-1, 400 V
40
Rated control supply voltage DC
110
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
DC
Rated operation current Ie at AC-1, 400 V (unit)
A
Rated control supply voltage DC (unit)
V
