Motor Circuit Breaker 2.8-4.0A 3P Std Performance S00

by Siemens
Ideal Part Number SIE3RV20111EA10 Manufacturer Number 3RV2011-1EA10 Barcode 4011209712454

Product Details

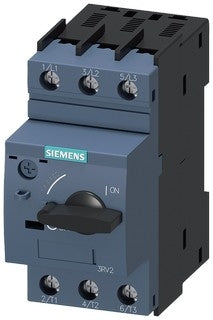

Motor Circuit Breaker 2.8-4.0A 3P Std Performance S00

The availability of machines and plants is a precondition for maximum productivity. Machines and plants should therefore be reliably protected against overload from the power supply system. In the event of a failure, motor starter protectors quickly disconnect the equipment from the supply, thus preventing expensive damage. The SIRIUS 3RV2 motor starter protector provides ideal protection.

Click and Collect: Pick up from your branch in 1 hour

Technical Documents

Technical Specifications

Width
45
Height
97
Depth
97
Rated operation power at AC-3, 400 V
3
With integrated auxiliary switch
no
Rated permanent current Iu
4
With integrated under voltage release
no
Number of poles
3
Rated operating voltage
690
Overload release current setting
2.8 - 4
Degree of protection (IP)
IP20
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Magnetic
Phase failure sensitive
yes
Device construction
Built-in device fixed built-in technique
Width (unit)
mm
Height (unit)
mm
Depth (unit)
mm
Rated operation power at AC-3, 400 V (unit)
kW
Rated permanent current Iu (unit)
A
Rated operating voltage (unit)
V
Overload release current setting (unit)
A
