Terminal Blocks 2.5mm White (6A 400V)

Terminal Blocks 2.5mm White (6A 400V)

by BizLine
Ideal Part Number BIZ320006 Manufacturer Number BIZ 320006 Barcode 3700420369257

Product Details

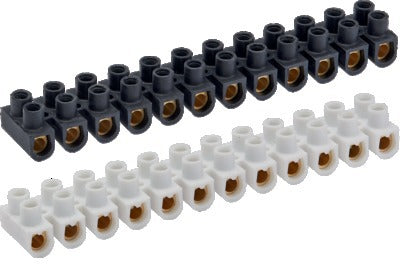

Terminal Strip Connector Block 12-Way 2.5mm White (6A 400V)

These 12-way ultra flexible terminal blocks can be separated in 1.5 turns without the use of tools.

Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Mounting method
Other
Colour
White
Rated voltage
400
Number of poles
12
Operating temperature
-25-40
Number of clamp positions per pole
2
Closing plate required
no
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Drill hole distance centrically
7
Transparent
no
Connectable conductor cross section solid-core
0-4
Connectable conductor cross section fine-strand with cable end sleeve
0-2.5
Connectable conductor cross section fine-strand without cable end sleeve
0-4
Connectable conductor cross section multi-wired
0-4
Material insulation body
Thermoplastic
Rated current In
24
Explosion-tested version 'Ex e'
no
Country of Origin
China
Rated voltage (unit)
V
Operating temperature (unit)
°C
Drill hole distance centrically (unit)
mm
Connectable conductor cross section solid-core (unit)
mm²
Connectable conductor cross section fine-strand with cable end sleeve (unit)
mm²
Connectable conductor cross section fine-strand without cable end sleeve (unit)
mm²
Connectable conductor cross section multi-wired (unit)
mm²
Rated current In (unit)
A
