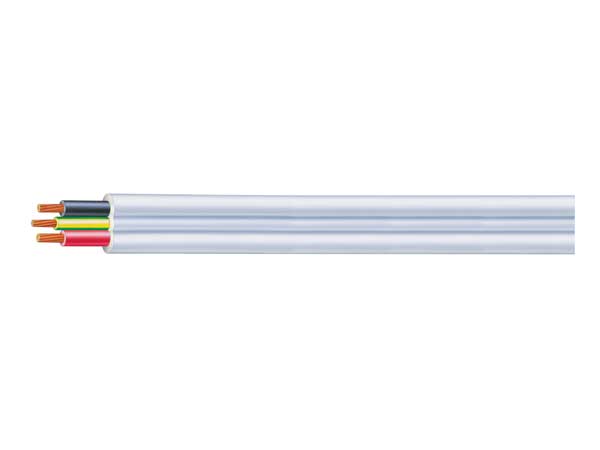

Cable 1mm 2c + Earth Flat TPS White

Cable 1mm 2c + Earth Flat TPS White

by Nexans NZ
Ideal Part Number OLX9779 Manufacturer Number CNZP02A1002WVHF Barcode 9416079020817

Product Details

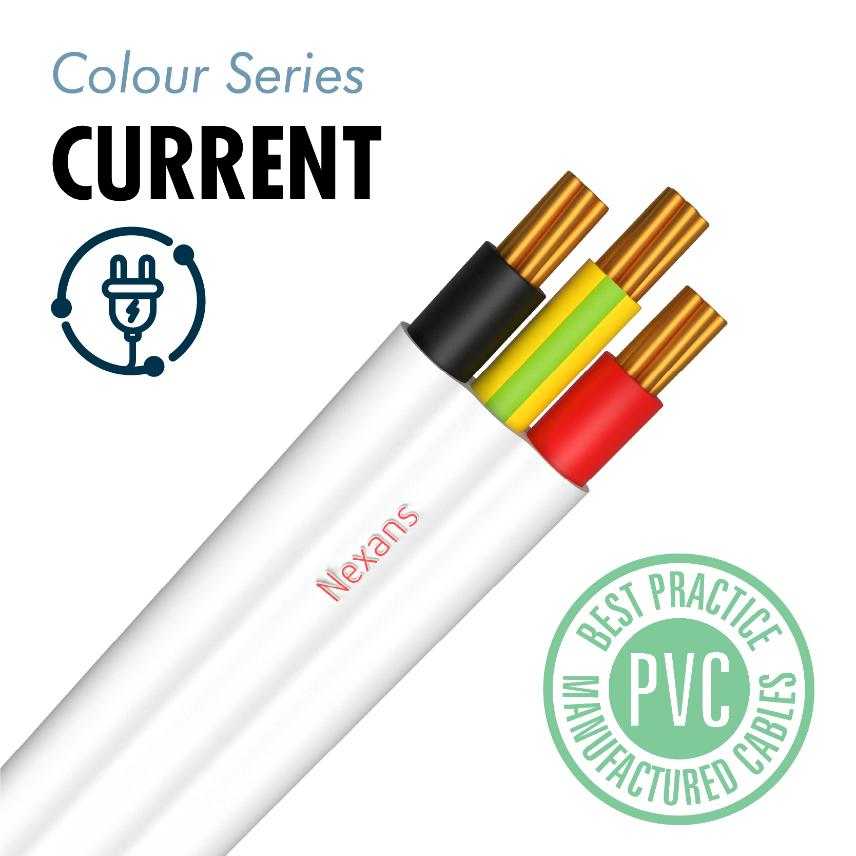

Nexans Cable 1.0mm 2 Core and Earth Flat TPS White

1.00mm Two Core and Earth TPS to AS/NZS 5000.2. Copper Conductor, PVC Insulation, PVC Sheath. Rated Voltage Uo/U 450/750V
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Nominal cross section conductor
1
Material core insulation
Polyvinyl chloride (PVC)
Core identification
Red, Black, Green/Yellow (2.5 mm²)
Nominal voltage U
750
Colour outer sheath
White
Conductor material
Copper
Material outer sheath
Polyvinyl chloride (PVC)
Conductor category
Class 2 = stranded
Nominal voltage U0
450
Number of cores
3
Max. conductor temperature
75
Nominal cross section conductor (unit)
mm²
Nominal voltage U (unit)
V
Nominal voltage U0 (unit)
V
Max. conductor temperature (unit)
°C
