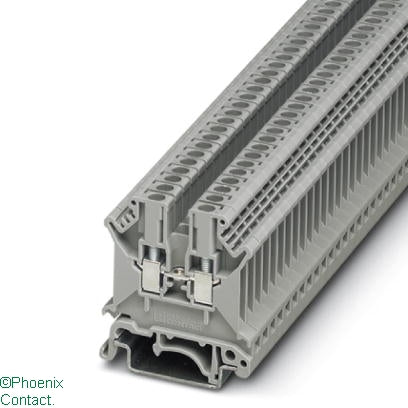

UK 3N Terminal 2.5mm Grey

UK 3N Terminal 2.5mm Grey

by Phoenix
Ideal Part Number PHX3001501 Manufacturer Number 3001501 Barcode 4017918089955

Product Details

Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², mounting type: NS 32, NS 35/15, NS 35/7,5, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
800
Operating temperature
105,-60
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
no
Connectable conductor cross section solid-core
0.2,4
Connectable conductor cross section fine-strand with cable end sleeve
0.25,1
Connectable conductor cross section fine-strand without cable end sleeve
0.2,2
Connectable conductor cross section multi-wired
0.2,1
Material insulation body
Other
Rated current In
24
Explosion-tested version 'Ex e'
yes
Country of Origin
China
Rated voltage (unit)
V
Operating temperature (unit)
°C
Connectable conductor cross section solid-core (unit)
mm²
Connectable conductor cross section fine-strand with cable end sleeve (unit)
mm²
Connectable conductor cross section fine-strand without cable end sleeve (unit)
mm²
Connectable conductor cross section multi-wired (unit)
mm²
Rated current In (unit)
A
