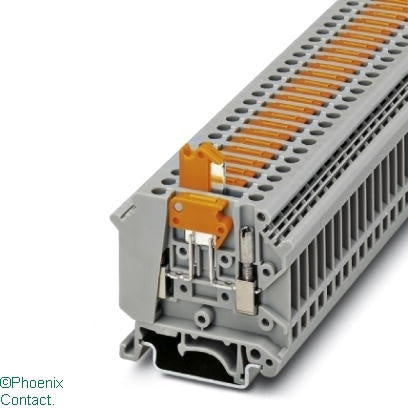

UK 5-MTK-P/P Terminal Knife Disconnect 4mm Grey

UK 5-MTK-P/P Terminal Knife Disconnect 4mm Grey

by Phoenix
Ideal Part Number PHX3004032 Manufacturer Number 3004032 Barcode 4017918090579

Product Details

Knife-disconnect terminal block, With test socket screws for insertion of test plugs, nom. voltage: 500 V, nominal current: 16 A, 1 level, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 6 mm², mounting: NS 32, NS 35/7,5, NS 35/15, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
500
Operating temperature
105,-60
Inflammability class of insulation material according to with UL94
V0
Type of electrical connection 1
Screw connection
With integrated test socket
yes
Number of levels
1
Number of clamp positions per level
2
Connectable conductor cross section solid-core
0.2,6
Connectable conductor cross section fine-strand with cable end sleeve
0.25,4
Connectable conductor cross section fine-strand without cable end sleeve
0.2,4
Connectable conductor cross section multi-wired
0.2,1
Material insulation body
Other
Country of Origin
China
Rated voltage (unit)
V
Operating temperature (unit)
°C
Connectable conductor cross section solid-core (unit)
mm²
Connectable conductor cross section fine-strand with cable end sleeve (unit)
mm²
Connectable conductor cross section fine-strand without cable end sleeve (unit)
mm²
Connectable conductor cross section multi-wired (unit)
mm²
