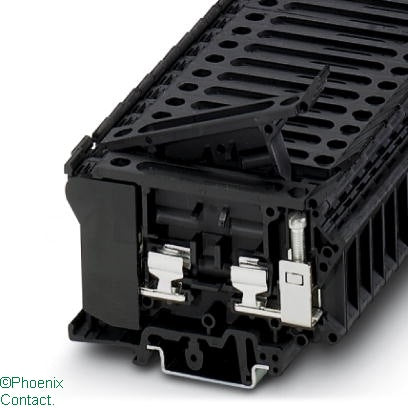

UK 6.3HESI Fuse Terminal 6 x 32mm Blk

UK 6.3HESI Fuse Terminal 6 x 32mm Blk

by Phoenix
Ideal Part Number PHX3004171 Manufacturer Number 3004171 Barcode 4017918090685

Product Details

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 6,3 x 32, nom. voltage: 500 V, nominal current: 10 A, number of positions: 1, connection method: Screw connection, Rated cross section: 1.5 mm², cross section:  0.5 mm²- 16 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, colour: black
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Black
Rated voltage
500
Operating temperature
105,-60
Inflammability class of insulation material according to with UL94
V0
Closing plate required
no
Type of electrical connection 1
Screw connection
Type of fuse insert
G-fuse 6.3x32 mm
Type of fuse holder
Swivelling
Number of levels
1
Connectable conductor cross section solid-core
0.5,16
Connectable conductor cross section fine-strand with cable end sleeve
0
Connectable conductor cross section fine-strand without cable end sleeve
0.5,16
Connectable conductor cross section multi-wired
0.5,4
Material insulation body
Other
Country of Origin
Turkey
Rated voltage (unit)
V
Operating temperature (unit)
°C
Connectable conductor cross section solid-core (unit)
mm²
Connectable conductor cross section fine-strand with cable end sleeve (unit)
mm²
Connectable conductor cross section fine-strand without cable end sleeve (unit)
mm²
Connectable conductor cross section multi-wired (unit)
mm²
