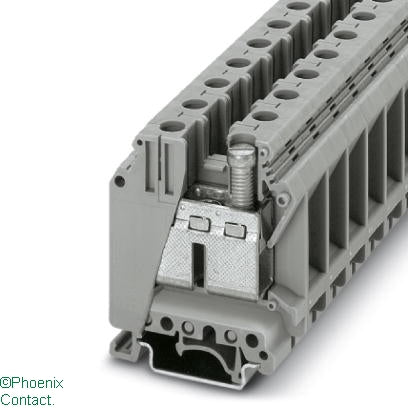

UK 35 Terminal 35mm Grey

UK 35 Terminal 35mm Grey

by Phoenix
Ideal Part Number PHX3008012 Manufacturer Number 3008012 Barcode 4017918091552

Product Details

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 125 A, connection method: Screw connection, cross section: 0.75 mm² - 50 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
1000
Operating temperature
105,-60
Inflammability class of insulation material according to with UL94
V0
Closing plate required
no
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
yes
Connectable conductor cross section solid-core
0
Connectable conductor cross section fine-strand with cable end sleeve
0.75,35
Connectable conductor cross section fine-strand without cable end sleeve
0.75,35
Connectable conductor cross section multi-wired
0.75,16
Material insulation body
Other
Rated current In
125
Explosion-tested version 'Ex e'
yes
Country of Origin
Germany
Rated voltage (unit)
V
Operating temperature (unit)
°C
Connectable conductor cross section solid-core (unit)
mm²
Connectable conductor cross section fine-strand with cable end sleeve (unit)
mm²
Connectable conductor cross section fine-strand without cable end sleeve (unit)
mm²
Connectable conductor cross section multi-wired (unit)
mm²
Rated current In (unit)
A
