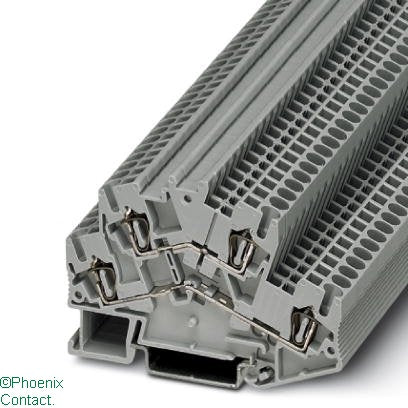

STTBS 2.5 Terminal 2.5mm 2Level Spring Cage Grey

STTBS 2.5 Terminal 2.5mm 2Level Spring Cage Grey

by Phoenix
Ideal Part Number PHX3038464 Manufacturer Number 3038464 Barcode 4017918902162

Product Details

Double-level spring-cage terminal block, nom. voltage: 500 V, nominal current: 22 A, connection method: Spring-cage connection, 1st and 2nd level, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, colour: gray
Request a quote for this product

Enter details to request a quote

Technical Specifications

Mounting method
DIN rail 35 mm
Colour
Grey
Rated voltage
500
Operating temperature
105,-60
Inflammability class of insulation material according to with UL94
V0
Closing plate required
yes
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Number of levels
2
Number of clamp positions per level
2
Internally connected stages
no
Connectable conductor cross section solid-core
0.08,4
Connectable conductor cross section fine-strand with cable end sleeve
0.14,2
Connectable conductor cross section fine-strand without cable end sleeve
0.08,2
Material insulation body
Other
Rated current In
22
Explosion-tested version 'Ex e'
yes
Country of Origin
Germany
Rated voltage (unit)
V
Operating temperature (unit)
°C
Connectable conductor cross section solid-core (unit)
mm²
Connectable conductor cross section fine-strand with cable end sleeve (unit)
mm²
Connectable conductor cross section fine-strand without cable end sleeve (unit)
mm²
Rated current In (unit)
A
