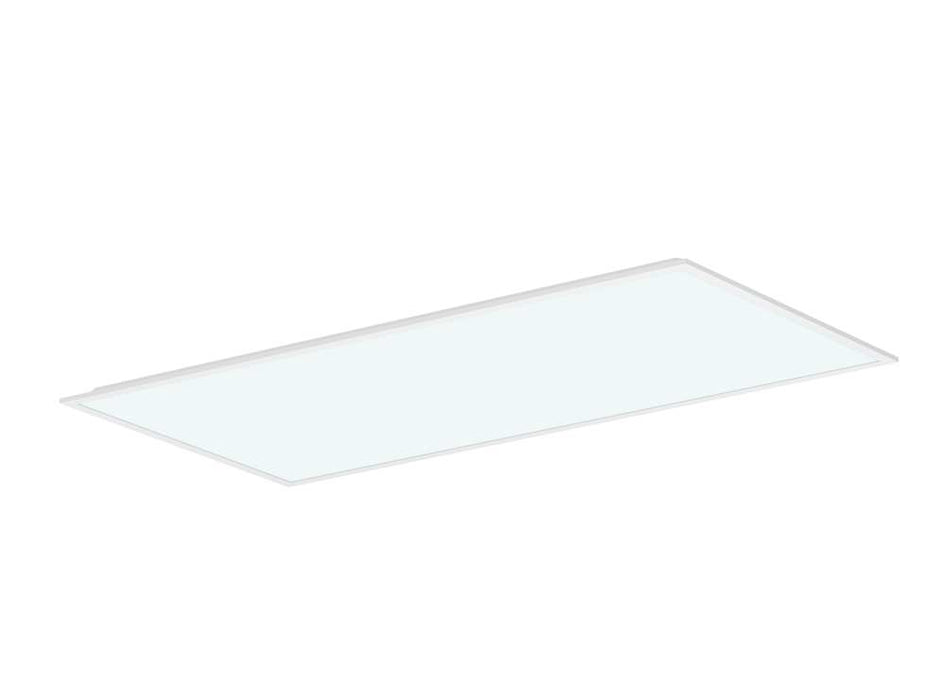

Backlit Panel LED 1200x600mm 60W 4K 4800lm CRI90 non-dim

Backlit Panel LED 1200x600mm 60W 4K 4800lm CRI90 non-dim

by RX Lighting
Ideal Part Number REXBLP126V2 Manufacturer Number BLP126V2

Product Details

Backlit Troffer Panel LED 1200mm x 600mm 60Watt 4000K 4800lm CRI90 non-dimming

Backlit panel can be covered as it offers excellent thermal management with an IC-4 rating


Surface Mounting Kit available REXBPLSMK126


Dali Dimming possible with optional driver REXBLPDD60 and connection cable REXBLPCABLE.

Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Connection type
Plug-in connector for plug-in building installation
Housing colour
White
Suitable for lamp power
60
Colour rendering index CRI
>90
Built-in width
595
Lamp type
LED not exchangeable
Built-in length
1195
Nominal voltage
230
Degree of protection (IP)
IP44
Suitable for built-in mounting
yes
Beam angle
90
Colour temperature
4000
Rated luminous flux according to IEC 62722-2-1
4800
Luminaire efficacy
80
Unified Glare Ratio (UGR)
19
Built-in height/depth
30
Power factor
0
Manufactuers Warranty (Months)
60
Standard(s)
AS/NZS 60598 Part 2.2
Suitable for lamp power (unit)
W
Built-in width (unit)
mm
Built-in length (unit)
mm
Nominal voltage (unit)
V
Colour temperature (unit)
K
Rated luminous flux according to IEC 62722-2-1 (unit)
lm
Luminaire efficacy (unit)
lm/W
Built-in height/depth (unit)
mm
