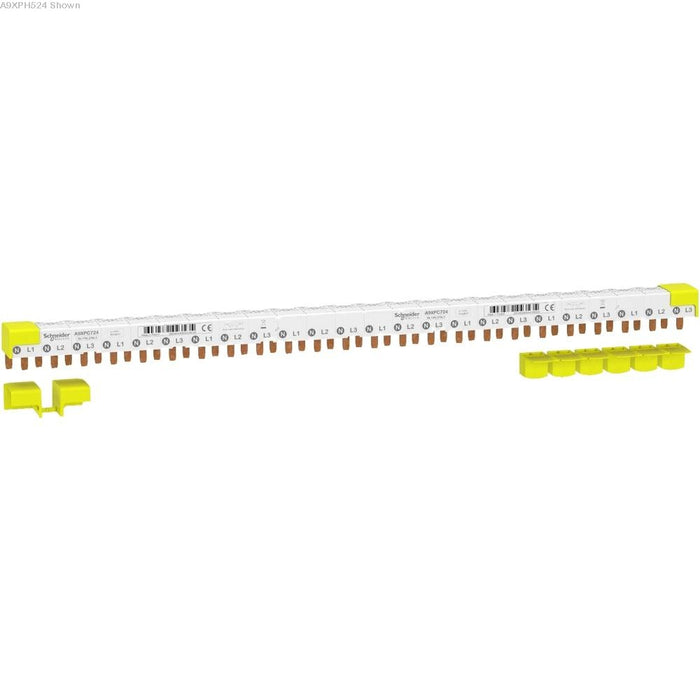

Comb Busbar 3L + N Balanced 80A 12 Module Bottom Feed

Comb Busbar 3L + N Balanced 80A 12 Module Bottom Feed

by Schneider Electric
Ideal Part Number SCHA9XPH712 Manufacturer Number A9XPH712

Product Details

Acti9 Comb Busbar 3L+N balanced 9mm pitch 12 modules 80A

This Acti9 connection accessory is a horizontal insulated cuttable comb busbar. It has a width of 12 modules of 18mm. It is dedicated to (Neutral, Line) installations. The distribution type is (N, L1), (N, L2), (N, L3). It is suitable for 12 devices with a 1P+N pole description. The distance between way is 54mm.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Insulated
yes
Number of phases
3
Cross section
16
Rated permanent current Iu
80
Number of poles
4
Length
216
Type of electric connection
Pin
Suitable for devices with auxiliary switch
no
Suitable for devices with N-conductor
yes
Suitable for number of devices
4
Max. rated operation voltage Ue
400
Module width
9
Cross section (unit)
mm²
Rated permanent current Iu (unit)
A
Length (unit)
mm
Max. rated operation voltage Ue (unit)
V
Module width (unit)
mm
