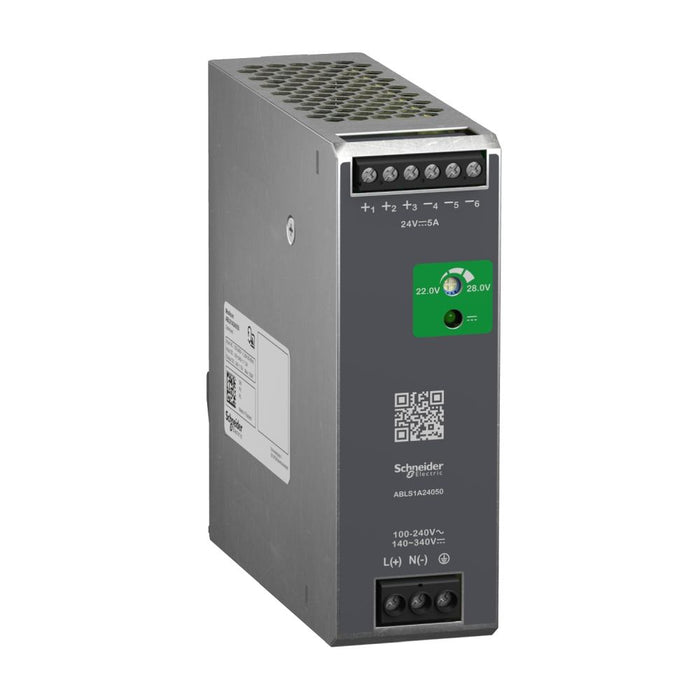

Modicon Power Supply 1Ph 120W 24VDC 5A Switch Mode

Modicon Power Supply 1Ph 120W 24VDC 5A Switch Mode

by Schneider Electric
Ideal Part Number SCHABLS1A24050 Manufacturer Number ABLS1A24050 Barcode 3606481500236

Product Details

Modicon Power Supply 1 Phase 120 Watt 24VDC 5Amp Switch Mode

The Modicon ABLS Optimized Regulated power supplies are designed to supply control circuits in industrial applications from 50 up to 480 W The QR Code printed on the front allows direct access to the latest technical information.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Width
40
Height
124
Depth
117
Voltage type (supply voltage)
AC/DC
Power output
120
Type of electric connection
screw
Rail mounting possible
yes
Degree of protection (IP)
IP20
1st secondary output voltage
24
Secondary voltage adjustable
yes
Rated supply voltage AC 50 Hz
100-240
Rated supply voltage AC 60 Hz
100-240
Rated supply voltage DC
140-340
Short-circuit-proof
yes
Nominal value output current 1
5
Width (unit)
mm
Height (unit)
mm
Depth (unit)
mm
Power output (unit)
W
1st secondary output voltage (unit)
V
Rated supply voltage AC 50 Hz (unit)
V
Rated supply voltage AC 60 Hz (unit)
V
Rated supply voltage DC (unit)
V
Nominal value output current 1 (unit)
A
