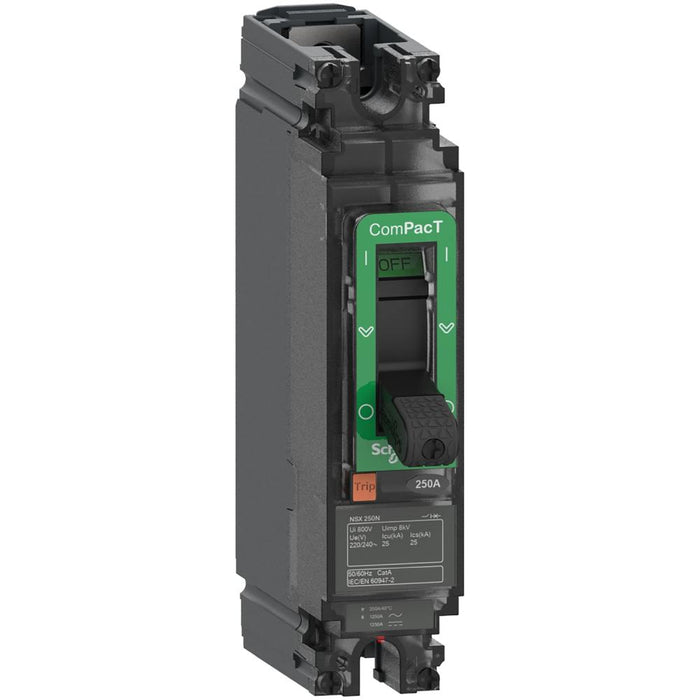

NSX250N Circuit Breaker 1P 250A 25kA/240VAC
Ideal Part Number SCHC25N1TM250
Manufacturer Number C25N1TM250
Barcode 3606481995964
Product Details
NSX250N Circuit Breaker, 1 pole 250A 25kA/240VAC
ComPacT NSX 250N is a complete 1 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 25kA rms at 240VAC 50/60Hz. The operational voltage is 277VAC 50/60Hz. This product embeds a 250A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an fixed thermal overload protection and a fixed magnetic protection. The dimension is 161mm x 35mm x 86mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.
ComPacT NSX 250N is a complete 1 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 25kA rms at 240VAC 50/60Hz. The operational voltage is 277VAC 50/60Hz. This product embeds a 250A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an fixed thermal overload protection and a fixed magnetic protection. The dimension is 161mm x 35mm x 86mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.
