NSX500 DC PV Circuit Breaker 4P 500A 10kA/1000VDC

NSX500 DC PV Circuit Breaker 4P 500A 10kA/1000VDC

by Schneider Electric
Ideal Part Number SCHC63F4TM500D1 Manufacturer Number C63F4TM500D1 Barcode 3606482003620

Product Details

NSX500 DC PV Circuit Breaker 4 poles 500A, 10kA/1000VDC

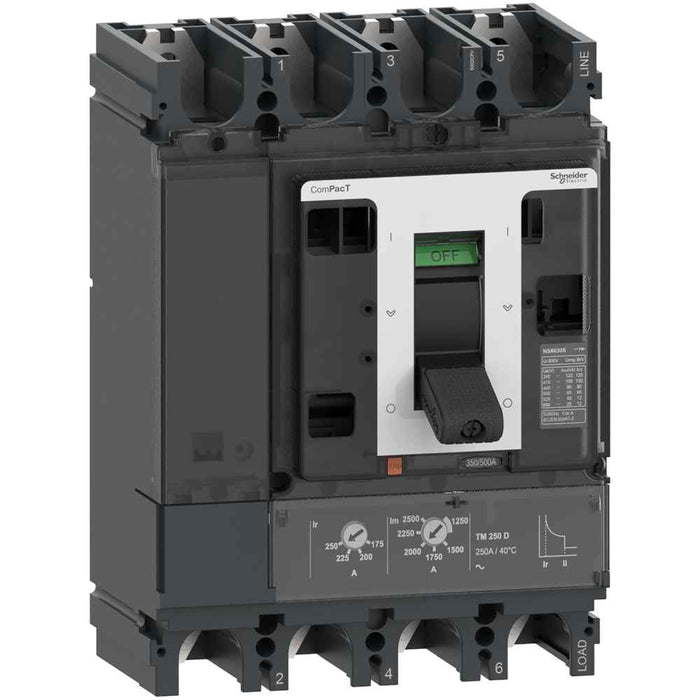

ComPacT NSX 500F DC PV is a 4 poles circuit breaker designed to optimize space and breaking capacity. It's an optimal choice for photovoltaic applications. The breaking capacity (Icu) is 36kA at 1000VDC with 4 poles series. The rated current is 500A and the operational voltage is 1000VDC. The dimensions are 255mm x 285mm x 110mm. It is compliant with international standard EN/IEC 60947.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
500
Number of poles
4
Overload release current setting
350…500
Number of auxiliary contacts as change-over contact
5
Rated voltage
1000
Degree of protection (IP)
IP40
Position of connection for main current circuit
Front side
Motor drive integrated
no
Type of electrical connection of main circuit
Screw connection
Type of control element
Toggle
With switched-off indicator
yes
Adjustment range short-term delayed short-circuit release
2500…5000
Suitable for DIN rail (top hat rail) mounting
yes
Integrated earth fault protection
no
Motor drive optional
yes
Device construction
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
no
Complete device with protection unit
yes
Rated permanent current Iu (unit)
A
Overload release current setting (unit)
A
Rated voltage (unit)
V
Adjustment range short-term delayed short-circuit release (unit)
A
