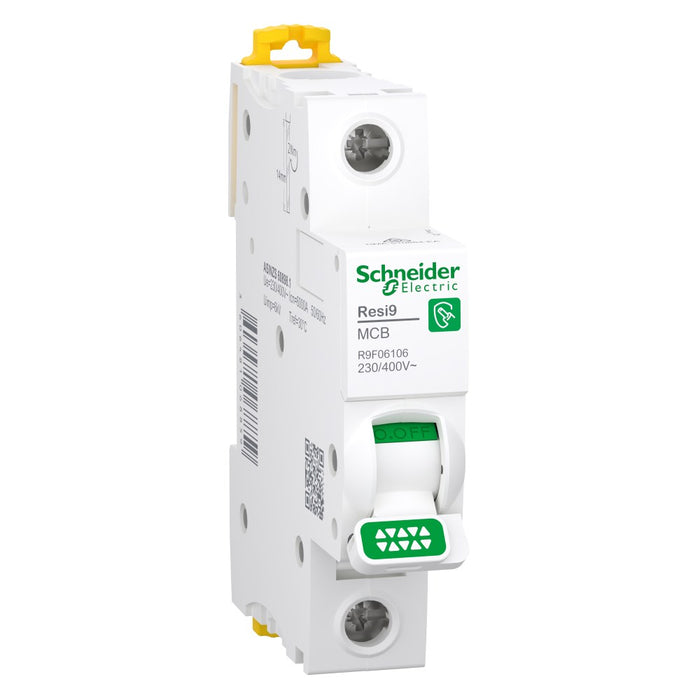

Resi9 MCB 1P 6A 6kA C-Curve

Resi9 MCB 1P 6A 6kA C-Curve

by Schneider Electric
Ideal Part Number SCHR9F06106 Manufacturer Number R9F06106 Barcode 3606481068859

Product Details

Miniature circuit breaker (MCB), Resi9, 1P, 6A, C curve, 6000A (AS/NZS 60898)

This Resi9 product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 6A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 230VAC conforming to AS/NZS 60898 standard.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
AC
Built-in depth
44
Rated current
6
Rated voltage
230
Frequency
50
Release characteristic
C
Rated insulation voltage Ui
500
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Explosion-proof
no
Degree of protection (IP)
IP20
Number of protected poles
1
Concurrently switching neutral conductor
no
Connectable conductor cross section solid-core
1.25
Connectable conductor cross section multi-wired
1.16
Ambient temperature during operating
-25
Flush-mounted installation
no
Additional equipment possible
no
Number of poles (total)
1
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6
Rated impulse withstand voltage Uimp
4
Country of Origin
China
Built-in depth (unit)
mm
Rated current (unit)
A
Rated voltage (unit)
V
Frequency (unit)
Hz
Rated insulation voltage Ui (unit)
V
Connectable conductor cross section solid-core (unit)
mm²
Connectable conductor cross section multi-wired (unit)
mm²
Ambient temperature during operating (unit)
°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (unit)
kA
Rated impulse withstand voltage Uimp (unit)
kV
