Transformer 230/115 or 230VAC 2000VA
Ideal Part Number TRSPN21
Manufacturer Number PN21
Product Details
Transformer 230 Volt Primary/ 115 Volt or 230V AC Secondary 2000VA

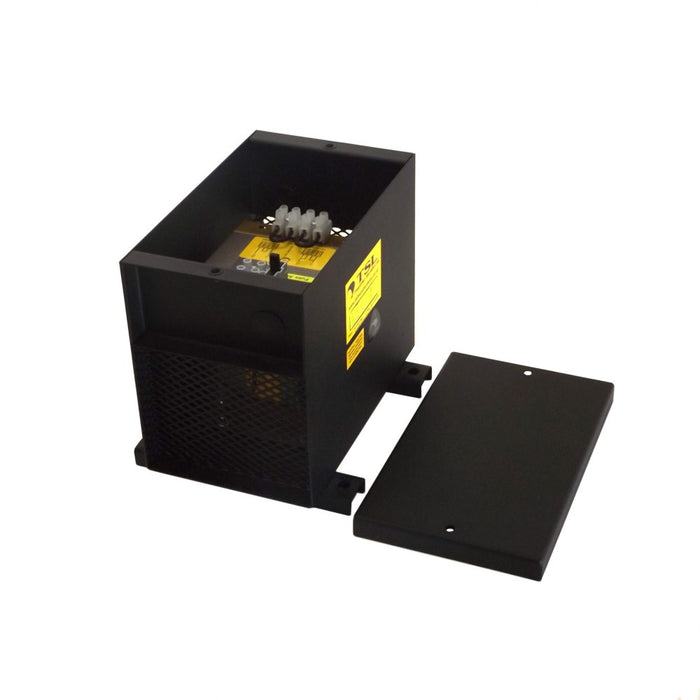

Intended applications: Fixed associated control & power transformers. Classification: Class 1, isolating short circuit proof. Protection: Primary fuse fitted (slow blow). Construction: Enclosed metal vented IP40, epoxy powder coated. Connections: Primary input terminals (fused) / secondary output terminals. Dual secondary output windings: Parallel 115vac or series 230vac Operating conditions: 47~63Hz, rated ambient temp 30 deg C. Manufactured standard: ASNZS 61558.2.4 (IEC 61558.2.4).
Intended applications: Fixed associated control & power transformers. Classification: Class 1, isolating short circuit proof. Protection: Primary fuse fitted (slow blow). Construction: Enclosed metal vented IP40, epoxy powder coated. Connections: Primary input terminals (fused) / secondary output terminals. Dual secondary output windings: Parallel 115vac or series 230vac Operating conditions: 47~63Hz, rated ambient temp 30 deg C. Manufactured standard: ASNZS 61558.2.4 (IEC 61558.2.4).
