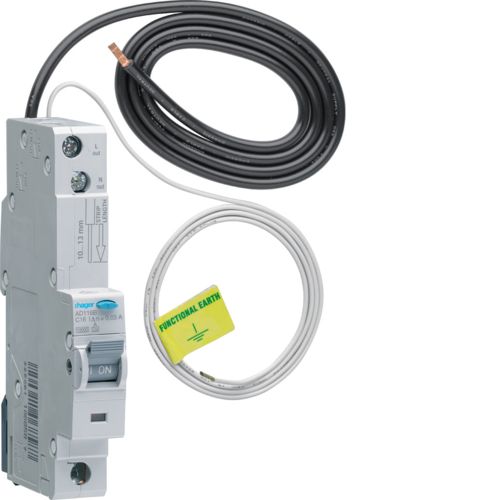

RCBO Single Mod 16A Type A 1P 10kA 30mA C-Curve

RCBO Single Mod 16A Type A 1P 10kA 30mA C-Curve

by Hager

Product Details

RCBO Single Module 16A Type A 1P 10kA 30mA C-Curve

RCBO’s are compact combination devices which provide MCB overcurrent protection & earth leakage protection. The Type A and /or Type AC devices, are available with various current ratings ranging from 6A - 45A.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
AC
Built-in depth
70 mm
Rated current
16 A
Rated voltage
250 V
Release characteristic
C
Rated fault current
30 A
Leakage current type
A
Surge current capacity
3 kA
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Frequency
50 Hz
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
1
Concurrently switching neutral conductor
no
Rated short-circuit breaking capacity according to IEC 60947-2
10 kA
Number of poles
1 (Total: 1)
Anti-nuisance tripping version
no
