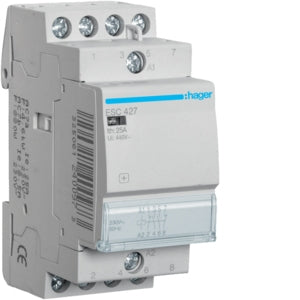

Contactor 4P 2N/O+2N/C 25A 230V Series II

by Hager

Product Details

Contactor 4P 2N/O+2N/C 25A 230V Series II AC7a & AC7b

Hager Contactors are suitable for load switching applications in residential and commercial installations. Some typical applications include heating, ventilation, indoor/outdoor lighting, pool pumps and/or filters.
Request a quote for this product

Enter details to request a quote

Technical Specifications

Built-in depth
60 mm
Rated operating voltage
400 V
Max. incandescent lamp load
1900 W
Max. load fluorescent lamp
950 VA (Duo circuit: 1990, Parallel compensated: 810)
Slider for hand switch
no
Voltage type
AC (Excitation voltage: AC, Operating voltage: AC)
Degree of protection
IP2X (Ip: IP2X)
Rated operation current
25 A
Additional equipment possible
yes
Rated excitation voltage
230 V
