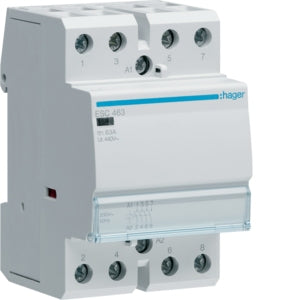

Contactor 4P 4N/O 63A 250VAC Series II

Contactor 4P 4N/O 63A 250VAC Series II

by Hager
Ideal Part Number HAGESC463 Manufacturer Number ESC463 Barcode 3250612401321

Product Details

Contactor 4P 4N/O 63A 250VAC Series II AC7a & AC7b

Hager Contactors are suitable for load switching applications in residential and commercial installations. Some typical applications include heating, ventilation, indoor/outdoor lighting, pool pumps and/or filters.
Request a quote for this product

Enter details to request a quote

Technical Specifications

Built-in depth
60
Rated operating voltage
400
Max. incandescent lamp load
6500
Max. load fluorescent lamp
3000
Max. load fluorescent lamp (Duo circuit)
4700
Max. load fluorescent lamp (parallel compensated)
2100
Slider for hand switch
no
Voltage type (excitation voltage)
AC
Voltage type (operating voltage)
AC
Degree of protection (IP)
IP2X
Rated operation current
63
Additional equipment possible
yes
Rated excitation voltage
230
Built-in depth (unit)
mm
Rated operating voltage (unit)
V
Max. incandescent lamp load (unit)
W
Max. load fluorescent lamp (unit)
VA
Max. load fluorescent lamp (Duo circuit) (unit)
VA
Max. load fluorescent lamp (parallel compensated) (unit)
VA
Rated operation current (unit)
A
Rated excitation voltage (unit)
V
