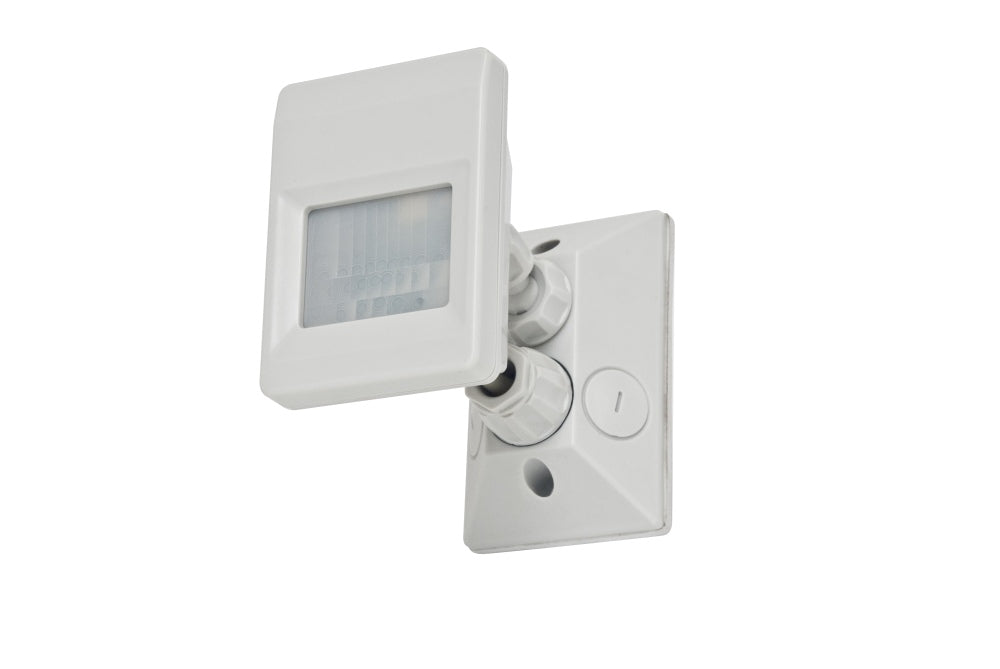

Proton PIR Motion Detector 500W Manual Override IP66 Grey
Ideal Part Number LGR1370076838
Manufacturer Number R110PIR3WM-24
Barcode 5391370076838
Product Details
PROTON, External Surface Mount Adjustable PIR, Manual Override, Grey
- Suitable for surface indoor and outdoor applications. Can be either wall or ceiling mounted.
- Manual override facility.
- Weatherproof IP66 housing. 3-wire version allowing for continuity of neutral in the circuit.
- Large terminals suitable for up to 2x1.5mm2 conductors.
- Detection angle of 120º. Adjustment range: 180º horizontal, 90º vertical. Adjustable detection range, up to 18m.
- Duration setting adjustable from 10 sec to 30 min.
- Adjustable lux control level 3lx to 2000lx.
- LED load max 500W. Fluorescent load max 100W. Resistive load max 2000W
