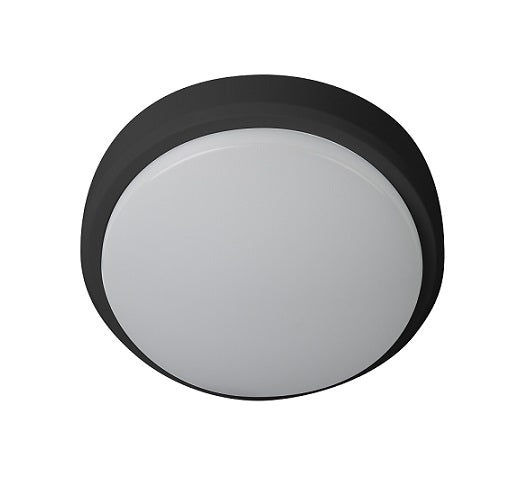

Ohio Bulkhead Round LED 12W IP54 3k/4k/57k White & Blk Trim

Ohio Bulkhead Round LED 12W IP54 3k/4k/57k White & Blk Trim

by LED Group Robus
Ideal Part Number LGR1370083515 Manufacturer Number RHC12CCT3-01 Barcode 5391370083515

Product Details

Ohio Bulkhead Round LED 12watt IP54 3000k/4000k/5700k White & Black Trim

The Ohio Circular bulkhead is suitable for sheltered outdoor common areas. It comes complete with white and black trims. It has an easy selectable option,3000k,4000k,5700k.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Protection class
II
Outer diameter
211
Housing colour
White
Voltage type
AC
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Height/depth
60
Housing material
Plastic
Lamp type
LED not exchangeable
Material cover
Plastic, opal
Impact strength
IK08
Nominal voltage
220,240
Degree of protection (IP)
IP54
With light source
yes
With control gear
yes
Beam angle
Extreme wide beam >80°
Nominal current
87
Colour temperature
3000,5700
Max. system power
11
Rated life time L70/B50 at 25 °C
30000
Colour consistency (McAdam ellipse)
SDCM6
Total harmonic distortion
97
Rated ambient temperature according to IEC 62722-2-1
-20,40
Dimming 1-10 V
no
Dimming DALI
no
Dimming phase cut-off
no
Dimming phase cut-on
no
Dimming with push-button
no
No dim function
yes
Luminaire efficacy
98
Dimming DSI
no
Unified Glare Ratio (UGR)
26
Colour of light adjustable
Positions
Power factor
0
Outer diameter (unit)
mm
Height/depth (unit)
mm
Nominal voltage (unit)
V
Nominal current (unit)
mA
Colour temperature (unit)
K
Max. system power (unit)
W
Rated life time L70/B50 at 25 °C (unit)
h
Rated ambient temperature according to IEC 62722-2-1 (unit)
°C
Luminaire efficacy (unit)
lm/W
