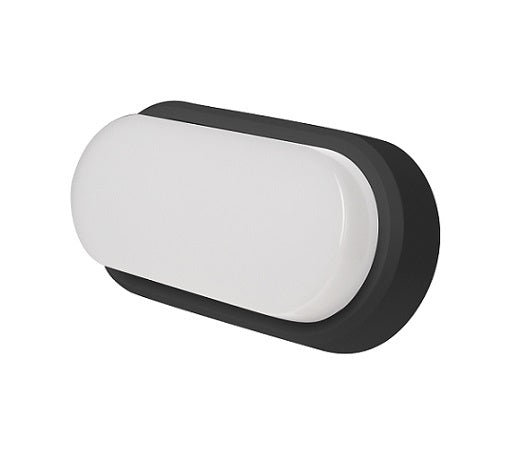

Ohio Bulkhead Oval LED 12W 3k/4k/57K White & Black Trims

Ohio Bulkhead Oval LED 12W 3k/4k/57K White & Black Trims

by LED Group Robus

Product Details

Ohio Bulkhead Oval LED 12watt 3000k/4000k/5700k White & Black Trims

The Ohio Oval bulkhead is suitable for sheltered outdoor common areas. It comes complete with white and black trims. It has an easy selectable option,3000k,4000k,5700k.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Protection class
II
Width
105 mm
Housing colour
White
Voltage type
AC
Type of control gear
LED operating device current-controlled
Colour rendering index CRI
80-89
Length
230 mm
Height/depth
60 mm
Housing material
Plastic
Lamp type
LED not exchangeable
Material cover
Plastic, opal
Impact strength
IK08
Nominal voltage
220,240 V
Degree of protection
IP54 (Ip: IP54)
With light source
yes
With control gear
yes
Beam angle
Extreme wide beam >80°
Nominal current
87 mA
Colour temperature
3000,5700 K
Max. system power
11 W
Rated life time L70/B50 at 25 °C
30000 h
Colour consistency
SDCM6 (Mcadam ellipse: SDCM6)
Total harmonic distortion
97
Rated ambient temperature according to IEC 62722-2-1
-20,40 °C
Dimming 1-10 V
no
Dimming DALI
no
Dimming phase cut-off
no
Dimming phase cut-on
no
Dimming with push-button
no
No dim function
yes
Luminaire efficacy
116 lm/W
Dimming DSI
no
Unified Glare Ratio
27 (Ugr: 27)
Colour of light adjustable
Positions
Power factor
0
