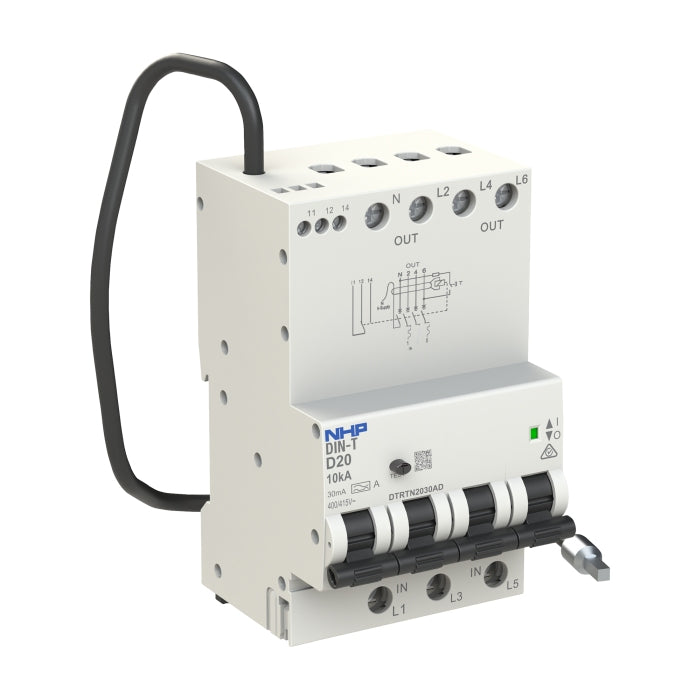

DIN-T RCBO 3P+N 20A 10kA D-Curve 300mA Type A Longbody 72mm

DIN-T RCBO 3P+N 20A 10kA D-Curve 300mA Type A Longbody 72mm

by NHP Electrical Engineering Products

Product Details

DIN-T RCBO 3P+N 20A 10kA D-Curve 300mA Type A Longbody 72mm
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Voltage type
AC
Rated current
20
Rated voltage
415 V
Rated insulation voltage Ui
500 V
Leakage current type
A
Pollution degree
2
Width in number of modular spacings
4
Degree of protection
IP40 (Ip: IP40)
Connectable conductor cross section solid-core
1,25 mm²
Connectable conductor cross section multi-wired
1,16 mm²
Ambient temperature during operating
-5,55 °C
Number of poles
4 (Total: 4)
Rated impulse withstand voltage Uimp
4 kA
Disconnection characteristic
Undelayed
Rated short-circuit breaking capacity according to EN 61009
10
