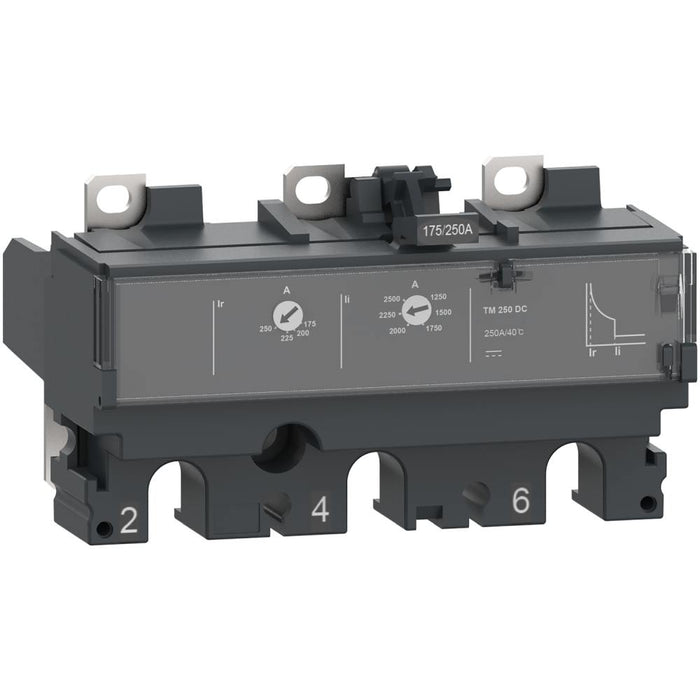

NSX250 Trip Unit 3P Thermal Magnetic 250A TM250DC

NSX250 Trip Unit 3P Thermal Magnetic 250A TM250DC

by Schneider Electric

Product Details

NSX250 Trip Unit, 3 poles, Thermal Magnetic 250A TM250DC

TM250D/DC is a 3 poles thermal-magnetic trip unit used on ComPacT NSX 250DC circuit breakers. This 250A rating thermal-magnetic trip unit is an optimal choice for DC distribution systems. It embeds an adjustable thermal overload protection and an adjustable magnetic protection against short-circuits.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Rated permanent current Iu
250 A
Number of poles
3
Short-circuit release function
Undelayed
Overload release current setting
175…250 A
