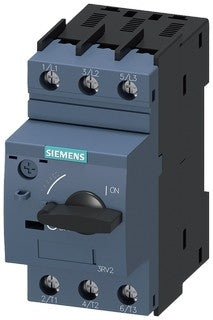

Motor Circuit Breaker 1.4-2.0A 3P Std Performance S00

by Siemens

Product Details

Sirius Circuit breaker size S00 for motor protection, CLASS 10 Amp-release 1.4...2 Amp N-release 26 Amp Standard switching capacity

The availability of machines and plants is a precondition for maximum productivity. Machines and plants should therefore be reliably protected against overload from the power supply system. In the event of a failure, motor starter protectors quickly disconnect the equipment from the supply, thus preventing expensive damage. The SIRIUS 3RV2 motor starter protector provides ideal protection.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Width
45 mm
Height
97 mm
Depth
97 mm
Rated operation power at AC-3, 400 V
1 kW
With integrated auxiliary switch
no
Rated permanent current Iu
2 A
With integrated under voltage release
no
Number of poles
3
Rated operating voltage
690 V
Overload release current setting
1.4 - 2 A
Degree of protection
IP20 (Ip: IP20)
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Switch off technique
Magnetic
Phase failure sensitive
yes
Device construction
Built-in device fixed built-in technique
