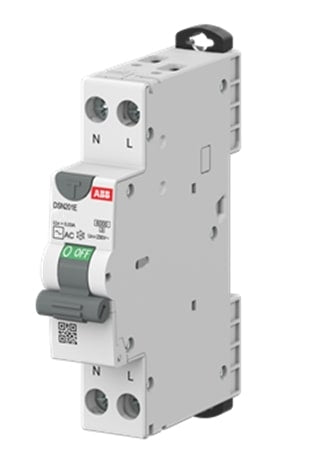

RCBO Single Module 1P&N 20A 30mA 6kA
Asea Brown Boveri

RCBO Single Module 1P&N 20A 30mA 6kA

Ideal part number ABBDSN201EC2030 Manufacturer number DSN201EC20A30 Barcode 4022903005223
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

RCBO Circuit Breaker Single Module 1Phase & Neutral 20Amp 30mA 6kA

The DSN201E series is a 1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). The neutral is switched

Technical specifications

Voltage type
AC
Built-in depth
70 mm
Rated current
20 A
Rated voltage
240 V
Release characteristic
C
Leakage current type
A
Surge current capacity
2 kA
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Power loss
2 W
Frequency
50/60 Hz
Degree of protection
IP20 (Ip: IP20)
Number of protected poles
1
Rated short-circuit breaking capacity according to IEC 60947-2
6 kA
Number of poles
2 (Total: 2)
Rated impulse withstand voltage Uimp
4 kV
