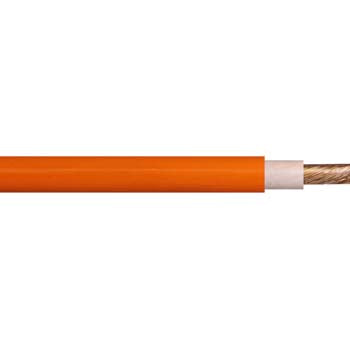

Cable 50mm BFX Rubber/Weld 110C 0.6/1kV Orange
Firstflex Cables

Cable 50mm BFX Rubber/Weld 110C 0.6/1kV Orange

Ideal part number AFLBFX050OR Manufacturer number BFX050/OR Barcode 9416024125383
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Flexible Cable 50mm BFX Rubber/Weld 110C 0.6/1kV Orange V-90HT Sheath Suitable for use in Switchboards, Welding, Submersible Pumps (to 500 metres)

Technical specifications

Colour
Orange
Total no. of cores
1
No. of cores excl. earth
1
No. of earth
0
Nominal size
50 mm²
Approximate stranding No. of wires x mm
1499/0.2
Approximate overall diameter
14.6 mm²
Rated voltage
0.6/1kV
Approx weight per km
562 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008, AS/NZS 3808, AS/NZS 5000.1, IEC 60332-1
Suits gland type
GK25STD
Cable class
5, 6
Conductor type
Plain copper
Insulation
X-HF-110
Sheath
SER105
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
110°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-40°C
Maximum operating temperature
110°C
Minimum operating temperature flexing
-25°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
4 x cable diameter
Minimum bending radius flexing
6 x cable diameter
