Cable 240mm STPE Earthing Flex Green/Yellow
Firstflex Cables

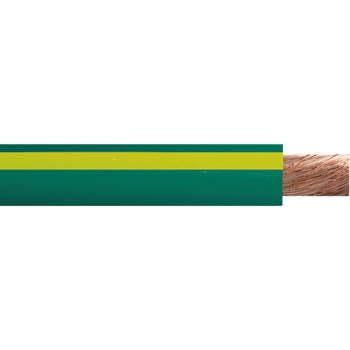

Cable 240mm STPE Earthing Flex Green/Yellow

Ideal part number AFLBGL240 Manufacturer number BGL240 Barcode 9416024126939
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 240mm STPE Earthing Flex Green/Yellow

Technical specifications

Colour
Green/Yellow
Total no. of cores
1
No. of cores excl. earth
1
Nominal size
240 mm²
Approximate overall diameter
24.7 mm²
Rated voltage
0.6/1kV
Approx weight per km
2235 kg
Relevant standards
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, IEC 60332-1
Suits gland type
GMA232
Cable class
5, 6
Conductor type
Plain copper
Insulation
SPVC V-90HT
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
105°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
75°C
Minimum bending radius fixed
4 x cable diameter
Minimum bending radius flexing
5 x cable diameter
