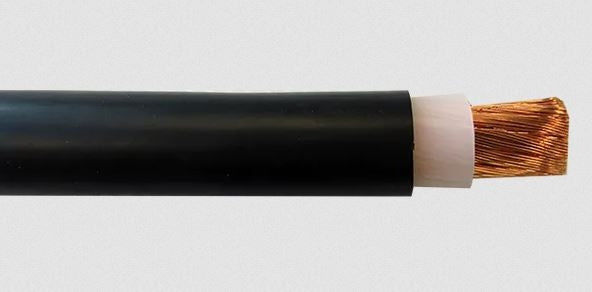

Cable 500mm 1c Cu XLPE Maxcab V90HT Black
Firstflex Cables

Cable 500mm 1c Cu XLPE Maxcab V90HT Black

Ideal part number AFLCFX500BK Manufacturer number CFX500BK Barcode 9416024102681
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 500mm 1 core Copper XLPE Maxcab V90HT Black

Technical specifications

Colour
Black
Total no. of cores
1
No. of cores excl. earth
1
No. of earth
0
Nominal size
500 mm²
Approximate stranding No. of wires x mm
2442/0.49
Approximate overall diameter
35.75 mm²
Rated voltage
0.6/1kV
Approx weight per km
5275 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008, AS/NZS 3808, AS/NZS 5000.1, IEC 60332-1
Cable class
5
Conductor type
Plain copper
Insulation
X-90
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum bending radius fixed
4 x cable diameter
Minimum bending radius flexing
6 x cable diameter
