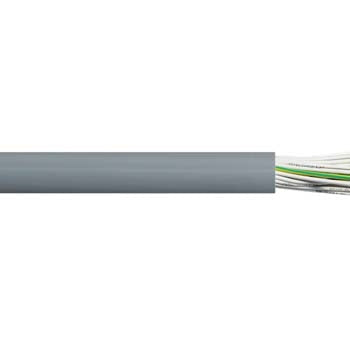

Cable 1mm 25c Control Flex Grey Numbered
Firstflex Cables

Cable 1mm 25c Control Flex Grey Numbered

Ideal part number AFLCT2510 Manufacturer number CT25/1.0 Barcode 9416024104036
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 1.0mm 25 Core SPVC Control Flex Grey Numbered 300/500V 80°C

Technical specifications

Colour
Grey
Core colour
Green/Yellow, White numbered
Total no. of cores
25
No. of cores excl. earth
24
No. of earth
1
Nominal size
1.0 mm²
Earth nominal size
1.0 mm²
Approximate stranding No. of wires x mm
32/0
Approximate overall diameter
15.4 mm²
Rated voltage
300 / 500V
Approx weight per km
449 kg
Relevant standards
AS/NZS 1125, AS/NZS 3808, IEC 60332-1
Suits gland type
GK25STD
Cable class
5, 6
Conductor type
Plain copper
Insulation
SPVC V-90
Sheath
SER105
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
80°C
Minimum bending radius fixed
5 x cable diameter
Minimum bending radius flexing
15 x cable diameter
