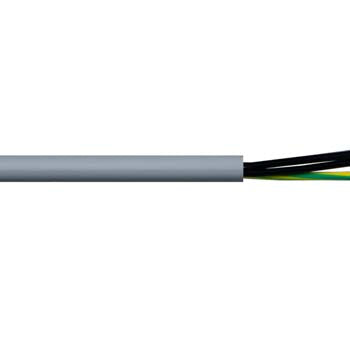

Cable .75mm 3c LSHF Control Flex Tinned

Cable .75mm 3c LSHF Control Flex Tinned

by Firstflex Cables
Ideal Part Number AFLCTP03075H Manufacturer Number CTP03/0.75H Barcode 9416024104265

Product Details

Cable 0.75mm 3 Core LSHF Control Flex Tinned 300/500V 80°C
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Colour
Grey
Core colour
Black numbered, Green/Yellow
Total no. of cores
3
No. of cores excl. earth
2
No. of earth
1
Nominal size
0.75 mm²
Earth nominal size
0.75 mm²
Approximate stranding No. of wires x mm
24/0
Approximate overall diameter
5.6 mm²
Rated voltage
300 / 500V
Approx weight per km
55 kg
Relevant standards
DIN VDE 0295, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034
Suits gland type
GMA216
Cable class
5
Conductor type
Tinned copper
Insulation
LSHF
Sheath
LSHF
Material
LSHF
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-40°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
7.5 x cable diameter
Minimum bending radius flexing
15 x cable diameter
