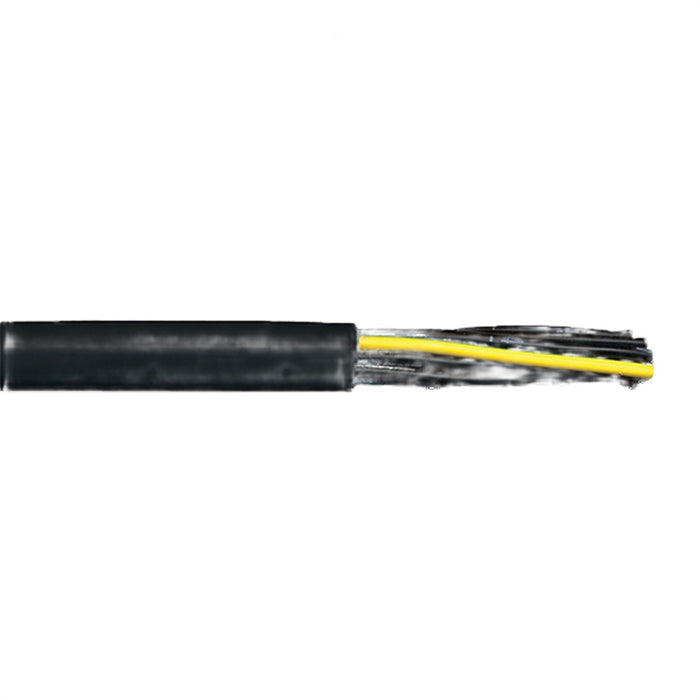

Cable .75mm 5c SPVC Control Flex Black Numbered
Firstflex Cables

Cable .75mm 5c SPVC Control Flex Black Numbered

Ideal part number AFLCTP05075BK Manufacturer number CTP05/0.75BK Barcode 9416024128599
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable .75mm 5c SPVC Control Flex Black Numbered

Firstflex CTPBK Series is a standard-performance flexible control cable designed for versatility and reliability in industrial and commercial applications. Rated at 300/500V and 80°C, it is ideal for control and signal use in machines, portable tools, and conveying equipment, as well as for indoor lighting and control leads. Featuring fine stranded copper conductors and a specially designed flexible PVC sheath, it offers high flexibility for fixed installations and occasional flexing without tensile load. Black UV stabilised sheath, flame retardant, and resistant to heat, oil, and chemicals, this cable delivers dependable performance in a range of environments, with stranding to VDE 0295 Class 5 and 6 for added durability.

Technical specifications

Colour
Black
Core colour
Black numbered, Green/Yellow
Total no. of cores
5
No. of cores excl. earth
4
No. of earth
1
Nominal size
0.75 mm²
Earth nominal size
0.75 mm²
Approximate stranding No. of wires x mm
24/0.2
Approximate overall diameter
6.7 mm²
Rated voltage
300 / 500V
Approx weight per km
79 kg
Relevant standards
AS/NZS 3808, DIN VDE 0295, IEC 60332-1
Suits gland type
GMA216,GK16STD,GMA220SS
