Cable 2.5mm 12c SPVC Control Flex Grey Numbered
Firstflex Cables

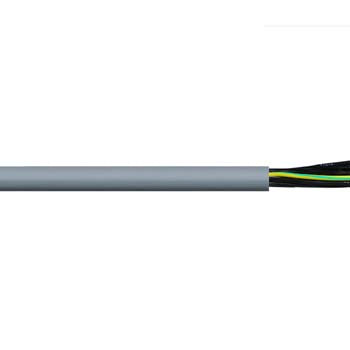

Cable 2.5mm 12c SPVC Control Flex Grey Numbered

Ideal part number AFLCTP1225 Manufacturer number CTP12/2.5 Barcode 9416024104906
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 2.5mm 12 Core SPVC Control Flex Grey Numbered 300/500V 80°C

Technical specifications

Colour
Grey
Core colour
Black numbered, Green/Yellow
Total no. of cores
12
No. of cores excl. earth
11
No. of earth
1
Nominal size
2.5 mm²
Earth nominal size
2.5 mm²
Approximate stranding No. of wires x mm
80/0
Approximate overall diameter
14.8 mm²
Rated voltage
300 / 500V
Approx weight per km
498 kg
Relevant standards
AS/NZS 3808, DIN VDE 0295, IEC 60332-1
Suits gland type
GK25STD
Cable class
5
Conductor type
Plain copper
Insulation
SPVC V-75
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
80°C
Maximum AC operating voltage
Uo 318V
Minimum operating temperature
-20°C
Maximum operating temperature
80°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
80°C
Minimum bending radius fixed
7.5 x cable diameter
Minimum bending radius flexing
15 x cable diameter
