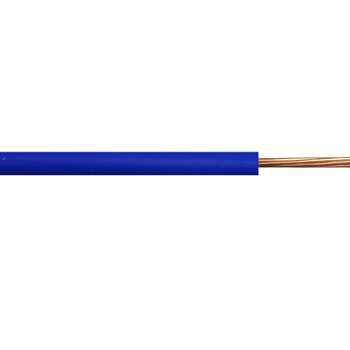

Conduit Wire 2.5mm Blue
Firstflex Cables

Conduit Wire 2.5mm Blue

Ideal part number AFLCW0025BL Manufacturer number CW002.5BL Barcode 9416024105163
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Standard Performance Fixed Building / Conduit Wire 0.6/1kV 90°C 2.5mm Blue

Technical specifications

Colour
Blue
Total no. of cores
1
No. of cores excl. earth
1
No. of earth
0
Nominal size
2.5 mm²
Approximate stranding No. of wires x mm
7/0.67
Approximate overall diameter
3.7 mm²
Rated voltage
0.6/1kV
Approx weight per km
35 kg
Relevant standards
AS/NZS 1125, AS/NZS 3008, AS/NZS 3808, AS/NZS 5000.1
Suits gland type
GPM12
Cable class
2
Conductor type
Plain copper
Insulation
SPVC V-90HT
Sheath
SPVC V-90
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
105°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-5°C
Maximum operating temperature
90°C
Minimum bending radius fixed
7 x cable diameter
