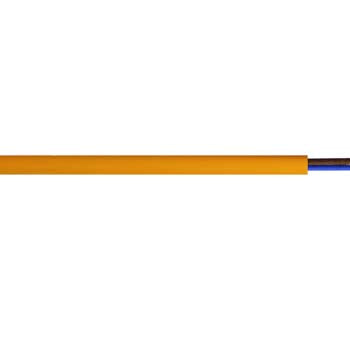

Cable 1mm 2c EPR/PUR LSHF Flex 300/500V Orange
Firstflex Cables

Cable 1mm 2c EPR/PUR LSHF Flex 300/500V Orange

Ideal part number AFLEP210OR Manufacturer number EP2/1.0OR Barcode 9416024106009
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 1.0mm 2 core EPR/PUR LSHF Flex 300/500V Orange Class 5

Technical specifications

Colour
Orange
Core colour
Blue, Brown
Total no. of cores
2
No. of cores excl. earth
2
No. of earth
0
Nominal size
1.0 mm²
Approximate stranding No. of wires x mm
32/0.2
Approximate overall diameter
7.5 mm²
Rated voltage
300 / 500V
Approx weight per km
78 kg
Relevant standards
DIN VDE 0293-308, DIN VDE 0295, HD22.1
Suits gland type
GK16STD
Cable class
5
Conductor type
Plain copper
Insulation
EPR R90
Sheath
PUR
Material
Polyurethane compound type
Bedding sheath
false
Inner sheath
true
Inner sheath material
TPE
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-45°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-40°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
4 x cable diameter
Minimum bending radius flexing
5 x cable diameter
