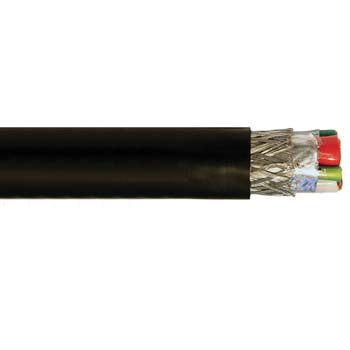

Cable 1.5mm 3c+E VSD Screened Flex Black
Firstflex Cables

Cable 1.5mm 3c+E VSD Screened Flex Black

Ideal part number AFLFDXCY1.5BK Manufacturer number FDXCY4/1.5BK Barcode 9416024106436
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 2.5mm 3c+E VSD Screened Flex Black

Technical specifications

Colour
Black
Core colour
Blue, Green/Yellow, Red, White
Total no. of cores
4
No. of cores excl. earth
3
No. of earth
1
Nominal size
1.5 mm²
Earth nominal size
1.5 mm²
Approximate stranding No. of wires x mm
30/0.25
Approximate overall diameter
11.8 mm²
Rated voltage
0.6/1kV
Approx weight per km
194 kg
Relevant standards
AS/NZS 1125, AS/NZS 3808, AS/NZS 5000.1, IEC 60332-1
Suits gland type
GK20EMC
Cable class
5
Conductor type
Plain copper
Insulation
X-90
Sheath
SPVC V-90
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Tinned copper braid
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
4 x cable diameter,6 x cable diameter
Minimum bending radius flexing
6 x cable diameter,9 x cable diameter
