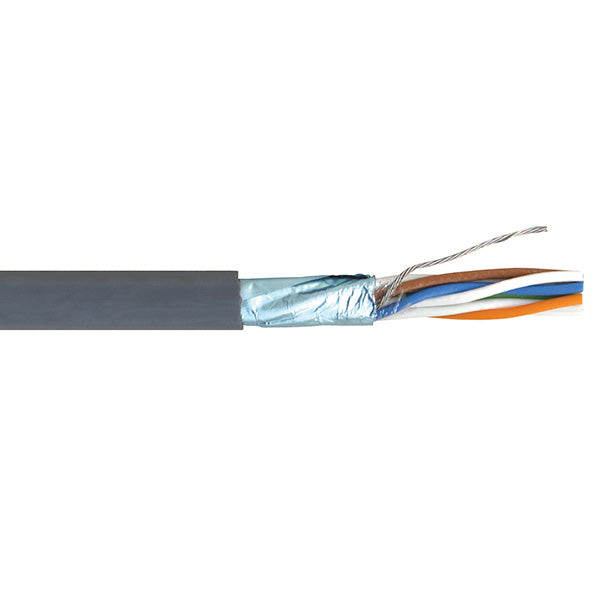

Cable Instrument 3pr .22mm O/S Ali Foil
Firstflex Cables

Cable Instrument 3pr .22mm O/S Ali Foil

Ideal part number AFLFT2003CS Manufacturer number FT2003CSBK Barcode 9416024106672
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

3 pair 0.22mm Multipair Overall Ali Foil Screened Tinned Data Cable 110V 90°C

Technical Specifications

Colour
Black
Core colour
Green, White
Total no. of cores
6
No. of cores excl. earth
6
No. of earth
0
Nominal size
0.22 mm²
No. of paired cores
3
Approximate stranding No. of wires x mm
7/0
Approximate overall diameter
6.2 mm²
Rated voltage
110VAC / 150VDC
Approx weight per km
48.4 kg
Relevant standards
AS/NZS 3808
Cable class
2
Conductor type
Tinned copper
Insulation
Polypropylene
Sheath
SPVC V-90
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Aluminium / polyester tape
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum bending radius fixed
10 x cable diameter
