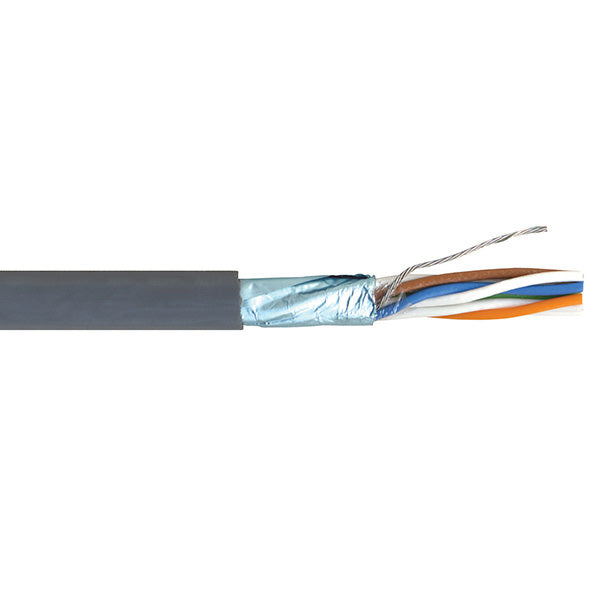

Cable Instrument 4pr .22mm O/S Ali Foil

Cable Instrument 4pr .22mm O/S Ali Foil

by Firstflex Cables
Ideal Part Number AFLFT2004CS Manufacturer Number FT2004CSBK Barcode 9416024106696

Product Details

4 pair 0.22mm Multipair Overall Ali Foil Screened Tinned Data Cable 110V 90°C
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Colour
Black
Core colour
Brown, White
Total no. of cores
8
No. of cores excl. earth
8
No. of earth
0
Nominal size
0.22 mm²
No. of paired cores
4
Approximate stranding No. of wires x mm
7/0
Approximate overall diameter
6.7 mm²
Rated voltage
110VAC / 150VDC
Approx weight per km
57.9 kg
Relevant standards
AS/NZS 3808
Cable class
2
Conductor type
Tinned copper
Insulation
Polypropylene
Sheath
SPVC V-90
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Aluminium / polyester tape
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum bending radius fixed
10 x cable diameter
