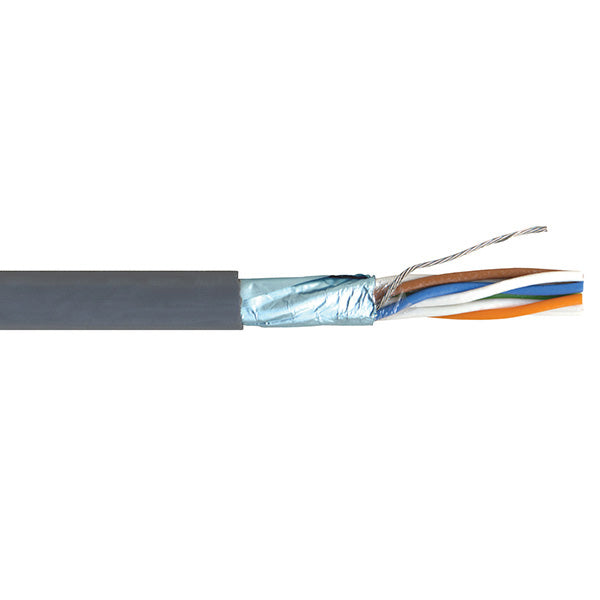

Cable Instrument 8pr .22mm O/S Ali Foil
Firstflex Cables

Cable Instrument 8pr .22mm O/S Ali Foil

Ideal part number AFLFT2008CS Manufacturer number FT2008CSBK Barcode 9416024106771
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

8 pair 0.22mm Multipair Overall Ali Foil Screened Tinned Data Cable 110V 90°C

Technical specifications

Colour
Black
Core colour
Green, Red
Total no. of cores
16
No. of cores excl. earth
16
No. of earth
0
Nominal size
0.22 mm²
No. of paired cores
8
Approximate stranding No. of wires x mm
7/0.2
Approximate overall diameter
8.5 mm²
Rated voltage
110VAC / 150VDC
Approx weight per km
99 kg
Relevant standards
AS/NZS 3808
Cable class
2
Conductor type
Tinned copper
Insulation
Polypropylene
Sheath
SPVC V-90
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Aluminium / polyester tape
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum bending radius fixed
10 x cable diameter
