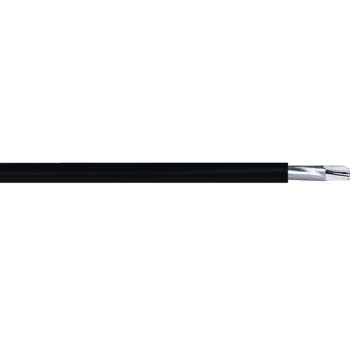

Cable Instrument 2pr .5mm O/S Ali Foil

Cable Instrument 2pr .5mm O/S Ali Foil

by Firstflex Cables
Ideal Part Number AFLFT5002CS Manufacturer Number FT5002CS Barcode 9416024106962

Product Details

2 pair 0.5mm Multipair Overall Ali Foil Screened Tinned Instrumentation Cable 110VAC 90°C
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Colour
Black
Core colour
Black, White
Total no. of cores
4
No. of cores excl. earth
4
No. of earth
0
Nominal size
0.5 mm²
No. of paired cores
2
Approximate stranding No. of wires x mm
7/0
Approximate overall diameter
7.5 mm²
Rated voltage
110VAC / 150VDC
Approx weight per km
51 kg
Relevant standards
AS/NZS 1125, AS/NZS 3808, IEC 60079.14, IEC 60332-1-2, IEC 60332-3-22
Cable class
2
Conductor type
Tinned copper
Insulation
SPVC V-90
Sheath
SPVC 5V-90
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Aluminium / polyester tape
Laying up
false
Separator
false
Filler
true
Filler material
Non-hydroscopic polypropylene
Maximum conductor temperature
90°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum bending radius fixed
10 x cable diameter
