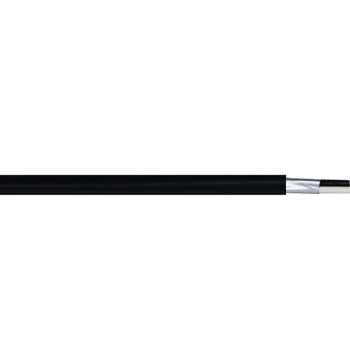

Cable Instrument 1pr 0.75mm O/S Ali Foil
Firstflex Cables

Cable Instrument 1pr 0.75mm O/S Ali Foil

Ideal part number AFLFT7501CS Manufacturer number FT7501CS Barcode 9416024108737
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

1 pair 0.75mm Overall Ali Foil Screened Tinned Instrumentation Cable 110VAC 90°C

Technical specifications

Colour
Black
Core colour
Black, White
Total no. of cores
2
No. of cores excl. earth
2
No. of earth
0
Nominal size
0.75 mm²
No. of paired cores
1
Approximate stranding No. of wires x mm
7/0.37
Approximate overall diameter
5.8 mm²
Rated voltage
110VAC / 150VDC
Approx weight per km
40 kg
Relevant standards
AS/NZS 1125, AS/NZS 3808, IEC 60079.14, IEC 60332-1-2, IEC 60332-3-22
Cable class
2
Conductor type
Tinned copper
Insulation
SPVC V-90
Sheath
SPVC 5V-90
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Aluminium / polyester tape
Laying up
false
Separator
false
Filler
true
Filler material
Non-hydroscopic polypropylene
Maximum conductor temperature
90°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum bending radius fixed
10 x cable diameter
