Cable BMS 1 Triple x 0.81mm PE/V75 110V RMS 18AWG
Firstflex Cables

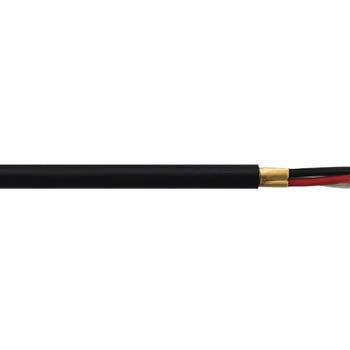

Cable BMS 1 Triple x 0.81mm PE/V75 110V RMS 18AWG

Ideal part number AFLFT8103CSBMS Manufacturer number FT8103CSBMS Barcode 9416024108782
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable BMS 1 Triple x 0.81mm PE/V75 110V rms 18AWG BMS/Control Overall Foil Screened Tinned Cable 110VAC 90°C

Technical specifications

Colour
Black
Core colour
Black, Natural, Red
Total no. of cores
3
No. of cores excl. earth
3
No. of earth
0
Nominal size
0.81 mm²
No. of triple cores
1
Approximate stranding No. of wires x mm
16/0.25
Approximate overall diameter
6.4 mm²
Rated voltage
110V
Approx weight per km
65 kg
Relevant standards
AS/NZS 3008, AS/NZS 3808, IEC 60332-1-2
Cable class
2
Conductor type
Tinned copper
Sheath
SPVC 5V-90
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Aluminium / polyester tape
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
75°C
Minimum operating temperature
-20°C
Maximum operating temperature
75°C
Minimum bending radius fixed
7.5 x cable diameter
