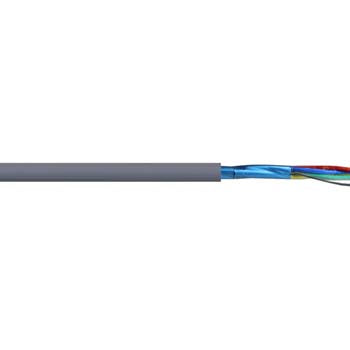

Cable Data .22mm 3pr Foil Scr Tinned
Firstflex Cables

Cable Data .22mm 3pr Foil Scr Tinned

Ideal part number AFLFT9503CS Manufacturer number FT9503CS Barcode 9416024108812
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

0.22mm 3 pair Foil Scr Tinned Multipair Overall Foil Screened Tinned Data Cable 110VAC 90°C

Technical specifications

Colour
Grey
Core colour
Black, White
Total no. of cores
6
No. of cores excl. earth
6
No. of earth
0
Nominal size
0.22 mm²
No. of paired cores
3
Approximate stranding No. of wires x mm
7/0.2
Approximate overall diameter
5.8 mm²
Rated voltage
110VAC / 150VDC
Approx weight per km
41.9 kg
Relevant standards
AS/NZS 3808, IEC 60332-1-2
Cable class
2
Conductor type
Tinned copper
Insulation
SPVC V-90
Sheath
SPVC V-90
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Aluminium / polyester tape
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum bending radius fixed
10 x cable diameter
