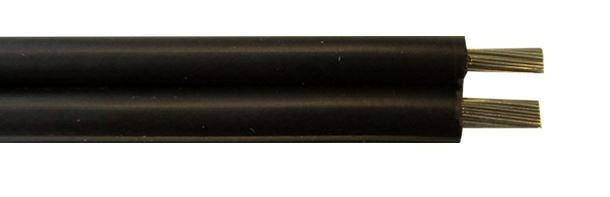

Garden Cable 2.5mm 2c V90HT ELV
Firstflex Cables

Garden Cable 2.5mm 2c V90HT ELV

Ideal part number AFLGLT022.5BK Manufacturer number GLT02/2.5BK Barcode 9416024110686
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Garden Cable 2.5mm 2c V90HT ELV 50 VAC / 120 VDC ELV (Not for mains connection)

Technical specifications

Colour
Black
Core colour
Black
Total no. of cores
2
No. of cores excl. earth
2
No. of earth
0
Nominal size
2.5 mm²
Approximate stranding No. of wires x mm
50/0.25
Approximate overall diameter
4.3 x 9
Rated voltage
50VAC / 120VDC
Approx weight per km
90 kg
Relevant standards
AS/NZS 1125, AS/NZS 3808, IEC 60332-1
Cable class
5
Conductor type
Tinned copper
Insulation
SPVC V-90HT
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum bending radius fixed
10 x cable diameter
Minimum bending radius flexing
15 x cable diameter
