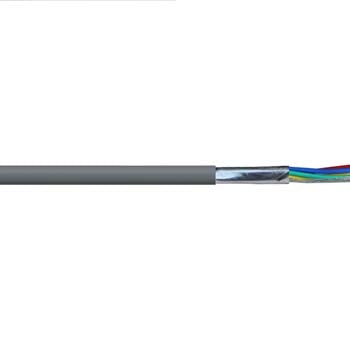

Cable 0.5mm 6c Foil Screen 110V SPVC
Firstflex Cables

Cable 0.5mm 6c Foil Screen 110V SPVC

Ideal part number AFLHCG306 Manufacturer number HCG306 Barcode 9416024111867
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 0.5mm 6 core Foil Screen 110V SPVC

Technical specifications

Colour
Grey
Core colour
Black, Blue, Green, Red, White, Yellow
Total no. of cores
6
No. of cores excl. earth
6
No. of earth
0
Nominal size
0.5 mm²
Approximate stranding No. of wires x mm
16/0.2
Approximate overall diameter
7.1 mm²
Rated voltage
110VAC / 150VDC
Approx weight per km
78 kg
Relevant standards
AS/NZS 1125, IEC 60332-1
Suits gland type
GMA216
Cable class
5
Conductor type
Tinned copper
Insulation
SPVC
Sheath
SPVC
Material
PVC
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
true
Screening material
Aluminium / polyester tape
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
75°C
Minimum operating temperature
-20°C
Maximum operating temperature
75°C
Minimum bending radius fixed
10 x cable diameter
