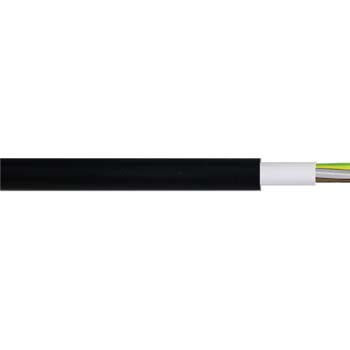

Cable 10mm 4c NBR Heavy Duty Flex Black
Firstflex Cables

Cable 10mm 4c NBR Heavy Duty Flex Black

Ideal part number AFLHD0410BK Manufacturer number HD04/10BK Barcode 9416024112185
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Twinskin HD Flexible Rubber Double Sheath Tinned 10mm 4 Core 0.6/1kV 90 Degree Black

Technical specifications

Colour
Black
Core colour
Black, Brown, Green/Yellow, Grey
Total no. of cores
4
No. of cores excl. earth
3
No. of earth
1
Nominal size
10 mm²
Earth nominal size
10 mm²
Approximate stranding No. of wires x mm
318/0.2
Approximate overall diameter
25.8 mm²
Rated voltage
0.6/1kV
Approx weight per km
975 kg
Relevant standards
AS/NZS 3191, AS/NZS 3808, AS/NZS 5000.1, IEC 60227, IEC 60332-1
Suits gland type
GK40STD
Cable class
5, 6
Conductor type
Plain copper
Insulation
X-90
Sheath
SER105
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
true
Separator material
V-90HT
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
5 x cable diameter
Minimum bending radius flexing
6 x cable diameter
