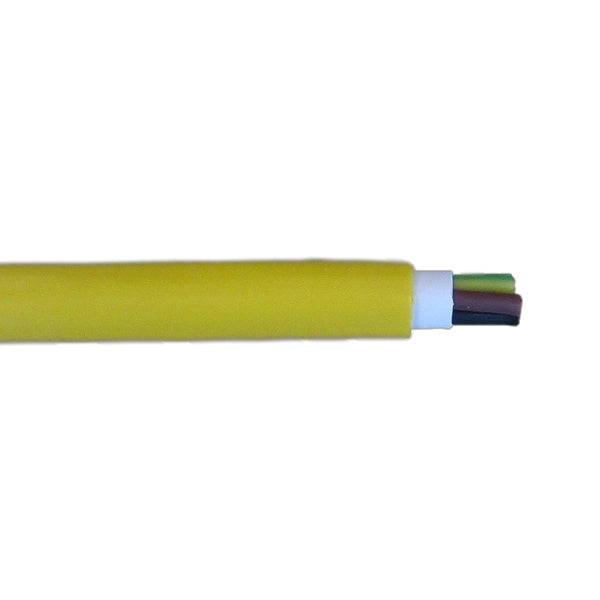

Cable 2.5mm 5c Chemtuff Twinskin Heavy Duty Flex Tin Yellow
Firstflex Cables

Cable 2.5mm 5c Chemtuff Twinskin Heavy Duty Flex Tin Yellow

Ideal part number AFLHD052.5TYE Manufacturer number HD05/2.5TYE Barcode 9416024112468
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Chemtuff Twinskin HDT Flexible Rubber Double Sheath Tinned 2.5mm 5 Core 0.6/1kV 90 Degree Yellow

Technical specifications

Colour
Yellow
Core colour
Black, Blue, Green/Yellow, Red, White
Total no. of cores
5
No. of cores excl. earth
4
No. of earth
1
Nominal size
2.5 mm²
Earth nominal size
2.5 mm²
Approximate stranding No. of wires x mm
80/0.2
Approximate overall diameter
15.4 mm²
Rated voltage
0.6/1kV
Approx weight per km
289 kg
Relevant standards
AS/NZS 3191, AS/NZS 3808, AS/NZS 5000.1, IEC 60227, IEC 60332-1
Suits gland type
GK25STD
Cable class
5, 6
Conductor type
Tinned copper
Insulation
X-90
Sheath
SER105
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
true
Separator material
V-90HT
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-20°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-5°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
5 x cable diameter
Minimum bending radius flexing
6 x cable diameter
