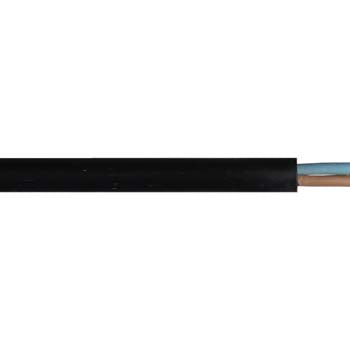

Cable 1mm 2c Rubber Flex 0.6/1kV Black Tinned

Cable 1mm 2c Rubber Flex 0.6/1kV Black Tinned

by Firstflex Cables
Ideal Part Number AFLHO210H07 Manufacturer Number HO2/1.0B Barcode 9416024112604

Product Details

Flexible Tinned Cable 1.0mm 2c Rubber Flex 0.6/1kV Black Tinned 90°C Suitable for use in hazardous and agressive environments, pleasure crafts, submersible pumps (to 200 metres) and other applications
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Colour
Black
Core colour
Blue, Brown
Total no. of cores
2
No. of cores excl. earth
2
No. of earth
0
Nominal size
1.0 mm²
Approximate stranding No. of wires x mm
32/0
Approximate overall diameter
7 mm²
Rated voltage
300 / 500V
Approx weight per km
72 kg
Relevant standards
DIN VDE 0165, DIN VDE 0295, EN 50363, EN 50525-2-21, H07RN-F Type, IEC 60332-1
Cable class
5
Conductor type
Tinned copper
Insulation
EPR R90
Sheath
CPE Elastomer Rubber
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-40°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-25°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
4 x cable diameter
Minimum bending radius flexing
6 x cable diameter
