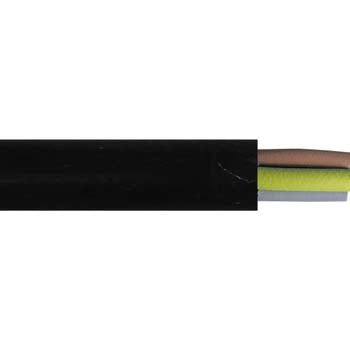

Cable .75mm 4c Rubber Flex 300/500V Black
Firstflex Cables

Cable .75mm 4c Rubber Flex 300/500V Black

Ideal part number AFLHO4G075B Manufacturer number HO4G0.75B Barcode 9416024112635
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Flexible Cable 0.75mm 4c Rubber Flex 300/500V Black CPE Sheath 0.6/1kV 90°C

Technical specifications

Colour
Black
Core colour
Black, Brown, Green/Yellow, Grey
Total no. of cores
4
No. of cores excl. earth
3
No. of earth
1
Nominal size
0.75 mm²
Earth nominal size
0.75 mm²
Approximate stranding No. of wires x mm
24/0.2
Approximate overall diameter
7.8 mm²
Rated voltage
300 / 500V
Approx weight per km
78 kg
Relevant standards
DIN VDE 0165, DIN VDE 0295, EN 50363, EN 50525-2-21, H07RN-F Type, IEC 60332-1
Cable class
5
Conductor type
Tinned copper
Insulation
EPR R90
Sheath
CPE Elastomer Rubber
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-40°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-25°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
4 x cable diameter
Minimum bending radius flexing
6 x cable diameter
