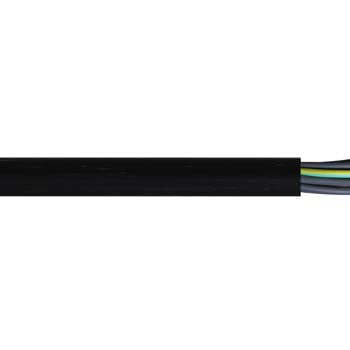

Cable 4mm 7c Rubber Flex 0.6/1kV Black
Firstflex Cables

Cable 4mm 7c Rubber Flex 0.6/1kV Black

Ideal part number AFLHO7G40B Manufacturer number HO7G4.0B Barcode 9416024112659
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Cable 4.0mm 7 core Rubber Flex 0.6/1kV Black

Technical specifications

Colour
Black
Core colour
Black numbered, Green/Yellow
Total no. of cores
7
No. of cores excl. earth
6
No. of earth
1
Nominal size
4.0 mm²
Earth nominal size
4 mm²
Approximate stranding No. of wires x mm
56/0.3
Approximate overall diameter
22.8 mm²
Rated voltage
0.6/1kV
Approx weight per km
660 kg
Relevant standards
DIN VDE 0165, DIN VDE 0295, EN 50363, EN 50525-2-21, H07RN-F Type, IEC 60332-1
Cable class
5
Conductor type
Tinned copper
Insulation
EPR R90
Sheath
CPE Elastomer Rubber
Material
Rubber
Bedding sheath
false
Inner sheath
false
Armoured
false
Screened
false
Laying up
false
Separator
false
Filler
false
Maximum conductor temperature
90°C
Maximum AC operating voltage
Uo 0.7kV
Minimum operating temperature
-40°C
Maximum operating temperature
90°C
Minimum operating temperature flexing
-25°C
Maximum operating temperature flexing
90°C
Minimum bending radius fixed
4 x cable diameter
Minimum bending radius flexing
6 x cable diameter
